Searching for substring in binary Registry value

Content Authoring
1

Hi there,

I’m having some difficultly constructing a relevance clause to search for a specific substring that is set in the registry for the windows proxy. The value is REG_BINARY and I need to return anything whose value contains the string “xyz123”

For example I know that the string “myproxyhost” equates to “6d7970726f7879686f7374” as hex, and this will be present as a sub-string some of the servers in the fleet in the REG_BINARY value. Any help is greatly appreciated.

2

Are you talking about the HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\Internet Settings

ProxyServer setting?

You might build relevance that looks something like this:

exists values "ProxyServer" whose (hexadecimal string (it as string)  contains "6d7970726f7879686f7374") of keys "HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\Internet Settings" of registry
2 Likes
3

I’ve tried this but it’s not relevant on any machines

exists values “winhttpSettings” whose (hexadecimal string (it as string) contains “6d7970726f7879686f7374”) of keys “HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\Internet Settings” of registry

4

Try native registry instead of registry ? In case it’s in the 64-bit hive?

1 Like
5

Can you give us the output of

values "winhttpSettings" of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\Internet Settings" of registry
6

I tried that query in an Analysis and it returned no data. We are actually querying the connection Binary value below - I have blanked out the actual value but it contains “proxy” when converted from hex to text. I’m looking at a relevance that will match machines that have this substring present in the binary value within the registry.

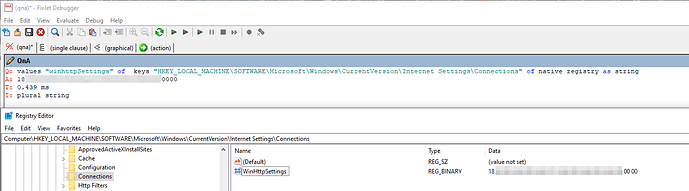

image1323×142 36 KB

7

There seems to be an issue with the lookup, the path is incorrect. Please fix the registry path and try again.

relevance path is:

HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\CurrentVersion\Internet Settings

But in the registry screenshot, the actual key path is:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections
1 Like
8

You probablay just need to modify the expressions @brolly33 provided with the correct registry hive for your environment.

values "winhttpSettings" of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string

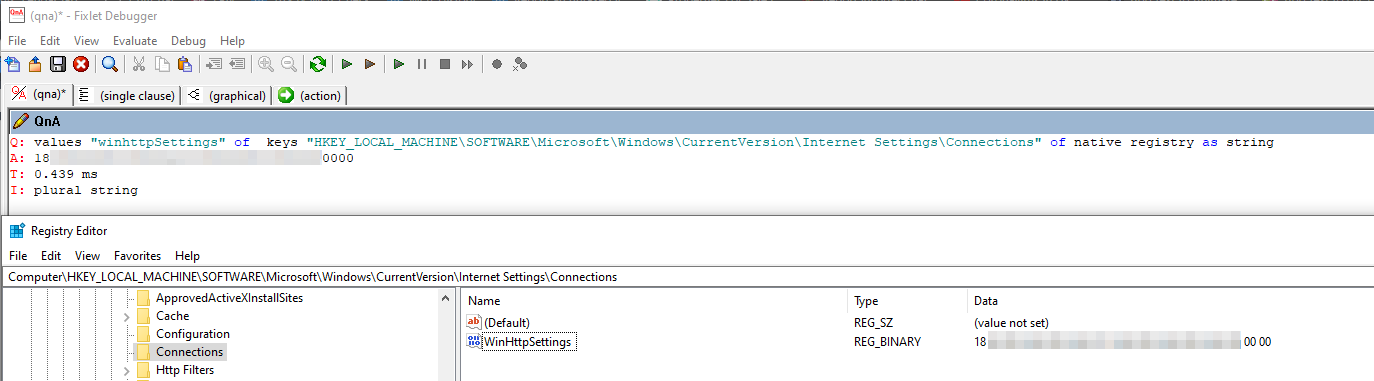

image1374×381 23.3 KB

1 Like
9

So that expression does indeed return a valid value when I add that to my analysis. The issue is finding a valid comparator expression to compare that value with either the full value “1a2f…0000” or a substring “1a2f” etc, that I can put into a relevance clause.

10

Here are some of the examples, which you can use as per your requirement:

// Retrieve winhttpSettings Value from Registry

Q: values "winhttpSettings" of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string
A: 180000000000050000000000000000000000
T: 0.745 ms

// Check if winhttpSettings Contains Specific String

Q: exists values "winhttpSettings" whose (it as string contains "180000000000050000000000000000000000") of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string
A: True
T: 0.605 ms

// Check if winhttpSettings Equals Specific String

Q: exists values "winhttpSettings" whose (it as string = "180000000000050000000000000000000000") of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string
A: True
T: 0.452 ms

// Check if winhttpSettings Is Not Equal to Specific String

Q: exists values "winhttpSettings" whose (it as string != "180000000000050000000000000000000000") of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string
A: False
T: 0.300 ms

// Check if winhttpSettings Does Not Contain Specific String

Q: exists values "winhttpSettings" whose (it as string does not contain "180000000000050000000000000000000000") of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string
A: False
T: 0.144 ms

// Check if winhttpSettings Starts with Specific Prefix

Q: exists values "winhttpSettings" whose (it as string starts with "1800") of  keys "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\Connections" of native registry as string
A: True
T: 0.197 ms
3 Likes
