I am trying to capture 2012 R2 image using bigfix OSD. The actions says completed in console status. But at the endpoint the message box gets stuck at lite touch installation screen. I have uploaded it with it.
I have checked in client log, lite tocuh log - I am not able to find any error.
Could someone be able to guide me what I may have to do next? Or where did I do wrong?
Hi,
could you please attach LiteTouch logs (DeploymentLogs) and describe computer partitions? (diskpart -> list disk, list volume, list partition…).
Thanks.
Sergio,
Thank you for your response.

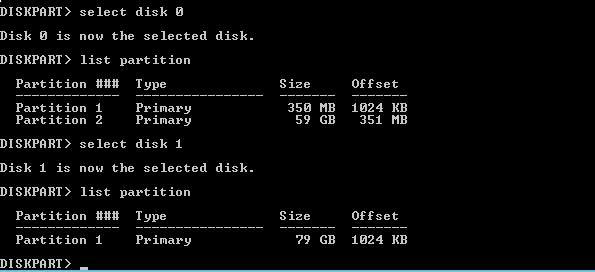

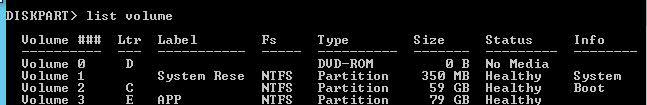

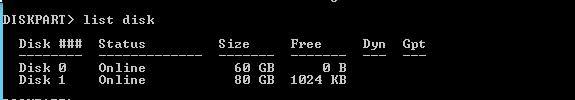

Please find the screen shots
Thank you
Please find the lite touch log
<![LOG[ZTIUtility!GetAllFixedDrives (False)]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[New ZTIDiskPartition : \EAWVOW0003-TRC\root\cimv2:Win32_DiskPartition.DeviceID=“Disk #1, Partition #0” \EAWVOW0003-TRC\root\cimv2:Win32_LogicalDisk.DeviceID=“E:”]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[New ZTIDisk : \EAWVOW0003-TRC\root\cimv2:Win32_DiskDrive.DeviceID="\\.\PHYSICALDRIVE1"]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[New ZTIDisk : \EAWVOW0003-TRC\root\cimv2:Win32_DiskDrive.DeviceID="\\.\PHYSICALDRIVE0"]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[New ZTIDiskPartition : \EAWVOW0003-TRC\root\cimv2:Win32_DiskPartition.DeviceID=“Disk #0, Partition #1” \EAWVOW0003-TRC\root\cimv2:Win32_LogicalDisk.DeviceID=“C:”]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[New ZTIDisk : \EAWVOW0003-TRC\root\cimv2:Win32_DiskDrive.DeviceID="\\.\PHYSICALDRIVE0"]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[ZTIUtility!GetAllFixedDrives = E: C:]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property LogPath is now = C:\MININT\SMSOSD\OSDLOGS]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property CleanStart is now = ]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Microsoft Deployment Toolkit version: 6.3.8298.1000]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property Debug is now = FALSE]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Found OS Disk: C:]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Found FirstPossibleSystemDrive: C:]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property SMSTSLocalDataDrive is now = C:]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Not running within WinPE.]LOG]!><time=“15:08:33.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property DeployRoot is now = C:\Deploy]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ResourceRoot is now = C:\Deploy]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property DeploymentMethod is now = MEDIA]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[DeploymentMethod = MEDIA]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[DeployRoot = C:\Deploy]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property DeployDrive is now = C:]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[DeployDrive = C:]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property PHASE is now = VALIDATION]LOG]!><time=“15:08:34.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property DeploymentType is now = REFRESH]LOG]!><time=“15:08:35.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Phase = VALIDATION]LOG]!><time=“15:08:35.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[About to run command: wscript.exe “C:\Deploy\Scripts\ZTIGather.wsf” /inifile:Bootstrap.ini]LOG]!><time=“15:08:35.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Command completed, return code = 0]LOG]!><time=“15:08:38.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Using a local or mapped drive, no connection is required.]LOG]!><time=“15:08:39.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[About to run command: wscript.exe “C:\Deploy\Scripts\ZTIGather.wsf” /nolocalonly]LOG]!><time=“15:08:39.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Command completed, return code = 0]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Using a local or mapped drive, no connection is required.]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property TaskSequenceName is now = Capture Windows Server 2012R2 X64]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property TaskSequenceVersion is now = 1.0]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property TaskSequenceTemplate is now = CaptureOnly.xml]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property OSGUID is now = {633cd33e-3460-4a46-b6c9-49db37fbdf41}]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ImageIndex is now = 1]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ImageSize is now = ]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ImageFlags is now = ]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ImageBuild is now = 6.3.9600.16408]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ImageProcessor is now = x64]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[InstallFromPath: C:\Deploy\Operating Systems\W2012R2X64\install.wim]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property InstallFromPath is now = C:\Deploy\Operating Systems\W2012R2X64\install.wim]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[SourcePath: C:\Deploy\Operating Systems\W2012R2X64]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property SourcePath is now = C:\Deploy\Operating Systems\W2012R2X64]LOG]!><time=“15:08:41.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property LTIDirty is now = TRUE]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Default Property Check (Join basic workgroup): JoinWorkgroup = WorkGroup]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property JoinWorkgroup is now = WorkGroup]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Using a local or mapped drive, no connection is required.]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property DeployDrive is now = C:]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[DeployDrive = C:]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Using a local or mapped drive, no connection is required.]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[DeploymentType = REFRESH]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[ResourceRoot = C:\Deploy]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property ResourceDrive is now = C:]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[ResourceDrive = C:]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property _SMSTSPackageName is now = Lite Touch Installation]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[SMS Task Sequencer already found on C:\MININT\Tools\X64]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[LTI beginning deployment]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[About to run command: “C:\MININT\Tools\X64\TsmBootstrap.exe” /env:SAStart]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property LTIDirty is now = TRUE]LOG]!><time=“15:08:42.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Command completed, return code = -2147467259]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Litetouch deployment failed, Return Code = -2147467259 0x80004005]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“3” thread="" file=“LiteTouch”>
<![LOG[For more information, consult the task sequencer log …\SMSTS.LOG.]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Property RetVal is now = -2147467259]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Validating connection to \172.22.80.17\Image\Logs\Capture_EAWVOW0003-TRC_1461909122448]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[DHCP is not enabled, assuming static IP address]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Mapping server share: \172.22.80.17\Image]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Mapped Network UNC Path Z: = \172.22.80.17\Image]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Found Existing UNC Path Z: = \172.22.80.17\Image]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Successfully established connection using supplied credentials.]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[TargetOS is the current SystemDrive]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
<![LOG[Copying C:\MININT\SMSOSD\OSDLOGS\LiteTouch.log to \172.22.80.17\Image\Logs\Capture_EAWVOW0003-TRC_1461909122448\EAWVOW0003-TRC\LiteTouch.log]LOG]!><time=“15:08:48.000+000” date=“04-29-2016” component=“LiteTouch” context="" type=“1” thread="" file=“LiteTouch”>
Hi,
in log file:
<![LOG[About to run command: “C:\MININT\Tools\X64\TsmBootstrap.exe” /env:SAStart]LOG]!>
<![LOG[Property LTIDirty is now = TRUE]LOG]!>
<![LOG[Command completed, return code = -2147467259]LOG]!>
<![LOG[Litetouch deployment failed, Return Code = -2147467259 0x80004005]LOG]!>
<![LOG[For more information, consult the task sequencer log …\SMSTS.LOG.]LOG]!>
It seems that you have an error just at task sequence start.
Could you please send the SMSTS.LOG?
Thanks.
Hi Sergio,
Thank you for your reply. I happened to see this today only.
I have tried OS image capturing on a similar 2012 R2 VM server and it was successful.
Dilu
